The CBE Kit Large 170 Black is the perfect solution for motorhomes with higher energy requirements that value performance, quality and reliability.
With a module output of 170 W, this set provides an excellent power supply for longer self-sufficient stays – ideal for safely operating lighting, refrigerators, water pumps or entertainment electronics.

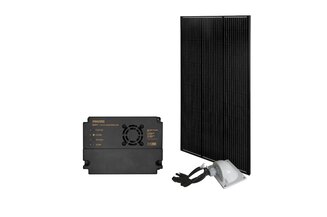

The set consists of the powerful CBE MFB170 solar module, the highly efficient PRM350 MPPT solar charge controller, sturdy aluminium brackets and a complete cable and mounting kit.
The module uses advanced PERC cell technology, which guarantees a consistently high energy yield even in heat or diffuse light.
The PRM350 controller uses modern MPPT (Maximum Power Point Tracking) technology to ensure optimum charging performance and protect your battery from overcharging and deep discharge.

The set is durable, weatherproof and blends harmoniously into the vehicle roof thanks to its elegant black design – a high-quality solution for discerning campers.

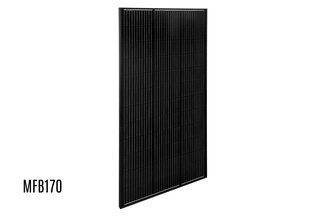

Technical data for photovoltaic module (MFB170)

• Power: 170 W, ideal for 12 V systems
• Dimensions: 1,320 × 670 × 30 mm, weight 9.5 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Voltage (open circuit): 23.76 V
• Current (short circuit): 8.63 A
• Voltage at rated power: 20.88 V
• Current at rated power: 8.14 A
• Robust black aluminium frame
• UV-resistant and weatherproof

Technical data Solar charge controller (PRM350 MPPT)

• System voltage: 12 V
• Max. module power: 350 W
• Technology: MPPT – Maximum Power Point Tracking
• Max. charging current: 25 A
• Battery types: Lead-acid, gel, AGM, lithium
• Protective functions: Overcharging, deep discharge, short circuit, reverse polarity
• Automatic switch-off in darkness
• LED indicators for charging and system status

Product advantages / USP

• High energy yield thanks to modern MPPT control
• Reliable performance in all weather conditions
• Easy installation thanks to pre-assembled cables
• Durable & robust: aluminium brackets, UV-resistant materials
• Elegant black design – discreet appearance for any vehicle

Scope of delivery

• 1 × CBE MFB170 photovoltaic module (170 W, black)
• 1 × CBE PRM350 MPPT solar charge controller
• 1 × KFPB670 mounting kit (aluminium, black)
• 1 × Complete cable set KT6K-C50 (incl. 5 m UV-resistant cable with plug connections)
• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Motorhomes, caravans and campervans
• 12 V electrical systems with lead-acid, gel, AGM or lithium batteries
