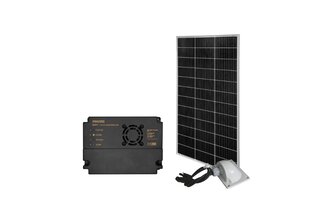

The CBE Kit Large 175 Standard is a powerful complete system for motorhomes and caravans with higher energy requirements.
With 175 W of power, it reliably supplies solar power to charge your on-board battery and safely operate appliances such as refrigerators, water pumps, lighting or entertainment electronics – ideal for long, self-sufficient trips.

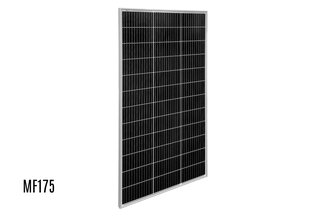

The CBE MF175 solar module uses advanced PERC cell technology, which ensures a consistently high energy yield even at high temperatures or in diffuse light.
The robust PRS300 solar charge controller ensures even and safe battery charging, protects against overcharging and deep discharge, and extends the life of your battery.

Thanks to sturdy aluminium brackets, UV-resistant cables and a waterproof roof grommet, the system is durable, safe and easy to install.
With its unobtrusive design, the module blends harmoniously into any vehicle roof – ideal for discerning campers.

Technical data for photovoltaic module (MF175)

• Power: 175 W, ideal for 12 V systems
• Dimensions: 1,320 × 670 × 30 mm, weight 9.5 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Voltage (open circuit): 23.76 V
• Current (short circuit): 8.88 A
• Voltage at rated power: 20.88 V
• Current at rated power: 8.38 A
• Robust, silver anodised aluminium frame
• UV and weather resistant

Technical data for solar charge controller (PRS300)

• For solar systems with a module output of up to 300 W

• Efficient PWM technology for even battery charging

• Protection against overcharging, deep discharge, short circuit, reverse polarity and overload

• Compact design, easy installation

• LED indicators for operating status and charge level

• Compatible with lead-acid, gel and AGM batteries

Product advantages / USP

• High energy efficiency for medium to high consumption
• Reliable battery charging with protection against overcharging and deep discharge
• Easy installation thanks to pre-assembled components
• Durable & weatherproof: aluminium brackets, UV-resistant cables
• Proven quality from CBE

Scope of delivery

• 1 × CBE MF175 photovoltaic module (175 W)
• 1 × CBE PRS300 solar charge controller
• 1 × KFPN670 mounting kit (aluminium, silver)
• 1 × Complete cable set KT6K-C50 (incl. 5 m UV-resistant cable with plug connections)
• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Motorhomes, caravans and campervans
• 12 V electrical systems with lead-acid, gel or AGM batteries
