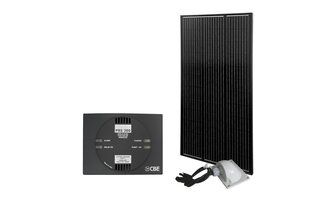

The CBE Kit Small 105 Black is a compact all-in-one solution for reliable, sustainable energy on the go.
With the high-quality CBE MFB105 solar module (105 W), the proven PRS300 solar charge controller and all the necessary components, this set offers everything you need for easy and safe installation.

Ideal for smaller motorhomes, caravans and campervans, the system allows you to power your on-board battery with clean solar energy – perfect for operating lighting, pumps, cool boxes or mobile devices independently of shore power.

The solar module impresses with its PERC cell technology, which guarantees consistently high performance even at high temperatures and in diffuse light conditions.
The robust black aluminium brackets are durable, UV-resistant and visually perfectly matched to modern vehicle roofs.

The CBE PRS300 controller included in the set ensures safe battery charging, protects against overcharging and deep discharge, and extends battery life.
The clear LED displays provide information about the current charge level and system status at all times.

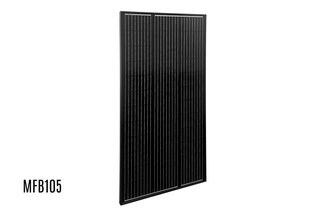

Technical data for photovoltaic module (MFB105)

• Power: 105 W, ideal for 12 V systems
• Dimensions: 1,062 × 530 × 30 mm, weight 6.2 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Voltage (open circuit): 23.76 V
• Current (short circuit): 5.33 A
• Voltage at rated power: 20.88 V
• Current at rated power: 5.03 A
• Robust black aluminium frame
• UV and weather resistant

Technical data for solar charge controller (PRS300)

• For solar systems with a module output of up to 300 W

• Efficient PWM technology for even battery charging

• Protection against overcharging, deep discharge, short circuit, reverse polarity and overload

• Compact design, easy installation

• LED indicators for operating status and charge level

• Compatible with lead-acid, gel and AGM batteries

Product advantages / USP

• Compact complete system – perfect for small vehicles
• Reliable power supply with 105 W output
• Easy installation thanks to pre-assembled components
• Durable and weather-resistant thanks to aluminium brackets
• Unobtrusive design with black frame

Scope of delivery

• 1 × CBE MFB105 photovoltaic module (105 W, black)

• 1 × CBE PRS300 solar charge controller

• 1 × KFPB530 mounting kit (aluminium, black)

• 1 × KT6K-C50 cable set (incl. 5 m UV-resistant cable with plug connections)

• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Motorhomes, caravans and campervans

• 12 V electrical systems with lead-acid, gel or AGM batteries
