The CBE Kit Small 110 Standard is the compact entry-level model in the Standard series and offers a reliable, efficient and maintenance-free solution for power supply on the go.
With the CBE MF110 solar module (110 W), the PRS300 solar charge controller and all the necessary mounting materials, this kit is ideal for smaller motorhomes, caravans and campervans that value independence and quality.

The module features state-of-the-art PERC cell technology, which guarantees stable performance even in low light or high temperatures.
The anodised aluminium brackets are robust, UV-resistant and corrosion-free. The set also includes a pre-assembled cable system and a waterproof roof feed-through for easy and safe installation.

The PRS300 controller protects the battery from overcharging and deep discharge and ensures even and safe charging – for a long service life of your on-board battery.

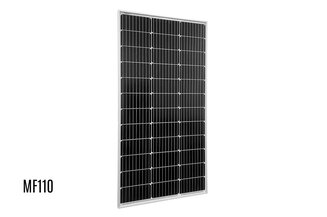

Technical data for photovoltaic module (MF110)

• Power: 110 W, ideal for 12 V systems
• Dimensions: 1,062 × 530 × 30 mm, weight 6.2 kg
• Cell type: PERC (Passivated Emitter and Rear Cell)
• Voltage (open circuit): 23.76 V | Current (short circuit): 5.58 A
• Voltage at rated power: 20.88 V | Current at rated power: 5.27 A
• Robust, silver anodised aluminium frame
• UV and weather resistant

Technical data solar charge controller (PRS300)

• For solar systems with a module output of up to 300 W

• Efficient PWM technology for even battery charging

• Protection against overcharging, deep discharge, short circuit, reverse polarity and overload

• Compact design, easy installation

• LED indicators for operating status and charge level

• Compatible with lead-acid, gel and AGM batteries

Product advantages / USP

• Compact complete system for small vehicles
• Reliable battery charging with protective functions
• Durable aluminium brackets, UV-resistant and corrosion-free
• Easy installation thanks to pre-assembled cables and roof feed-through
• Efficient PERC cells for consistently high performance

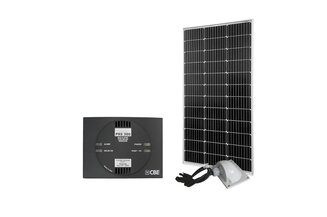

Scope of delivery

• 1 × CBE MF110 photovoltaic module (110 W)
• 1 × CBE PRS300 solar charge controller
• 1 × KFPN530 mounting kit (aluminium, silver)
• 1 × Complete cable set KT6K-C50 (incl. 5 m UV-resistant cable with plug connections)
• 1 × Waterproof roof feed-through with rubber seal

Suitable for

• Motorhomes, caravans and campervans
• 12 V electrical systems with lead-acid, gel or AGM batteries
